Services

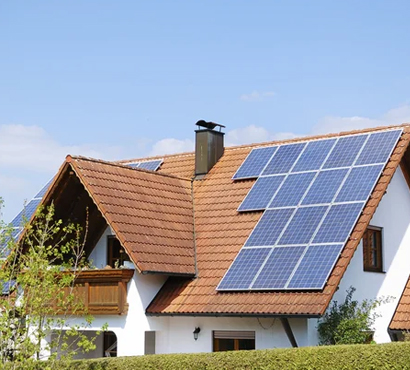

KW Roof Top Solutions

Grid connected Rooftop Solar power plants within the capacity range of 1 to 500 kilowatts are simple to install and easy to maintain. The rising demand of these systems amongst the residential and commercial rooftops is due to reliable power supply, thereby replacing the DG sets.

Be an Independent power producer, not only does a system pay itself off via Subsidies and lower, or no electricity bills, your investment further attracts Tax Benefits for a commercial establishment.

A standard KW system installation is affordable for almost anyone to get started on a Greener, Cleaner and Cheaper way to forward. Installing a solar power KW system will instantly add to the value of your residential of commercial establishment. Your most Profitable investment ever!

Huge Electricity bill makes today the besttime to invest in KW Rooftop Systems.

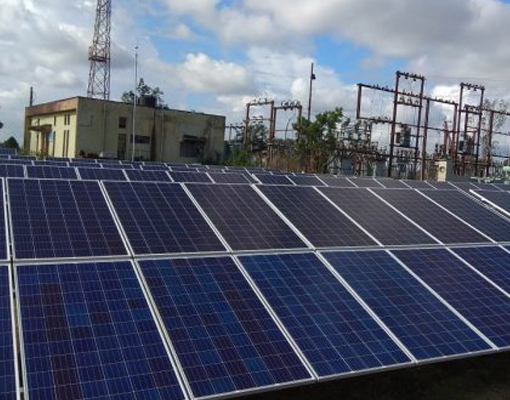

EPC Mega - Watt Grid Projects

We act as a principle and lead EPC solution provider for ensuring the completion of each solar plant from concept to commissioning including operation & maintenance the complete life of a solar power plant.

We design, build and commission with utmost sophistication and provides real time operational support & maintenance to large scale solar power plants with a proven experience of more than 2MW. Our design team ensure a robust & sustainable design for proper execution of project.

We ensure reliability, risk-free yields and durability by using quality multi-system products complementing each other.

Our main objective in the EPC is to provide top end quality service, from the initial conceptualization and design stage to the installation & commissioning stage.

CIVIL- SIDE EXECUTION

  • Land leveling
  • Full load test
  • Survey(TS)- MMS point as per design
  • Excavation -MMS colum post
  • Post alignment
  • Concrete & Pile Foundation
  • Cube test
  • Queering for pile foundation
  • Structure installation & alignment
  • Module installation & alignment
  • Degree and torque checking

DC-SIDE EXECUTION

  • Cable trench excavation from string box to inverter room
  • MMS table to table earth link using GI Flat
  • Erection of string box mounting bracket and string box
  • Earth link for string box mounting bracket
  • Erection of earthing electrode with champers
  • All earthing electrode linked in 2 X Run GI Flat
  • XLPE cable laying from SCB to Inverter and termination
  • SPV module to module connection with dressing
  • 4/6 Sqmm cable laying from module to SCB
  • MC4-connector termination in Field side as well as SCB side with dressing
  • SPD earth link in SCB from SCB mounting bracket
  • Erection of Lightning arrestor as per your drawing
  • Module to module earth link using 6 sqmm cable

AC-SIDE EXECUTION

  • Supply & Erection of 11/22/33 KV Switch yard.
  • Erection of Transformer, VCB,
  • Supply & Erection of two pole Structure in consumer side as well as tangenco side.
  • Earthing for Switch yard
  • Supply & Erection of Fencing in switch yard.
  • Supply, Erection of RCC pole, Conductor, Disk, Fin Insulator,
  • Erection of 11/22/33/KV transmission line
  • Supply, Erection, Testing & commissioning of bay extension in substation in tangenco

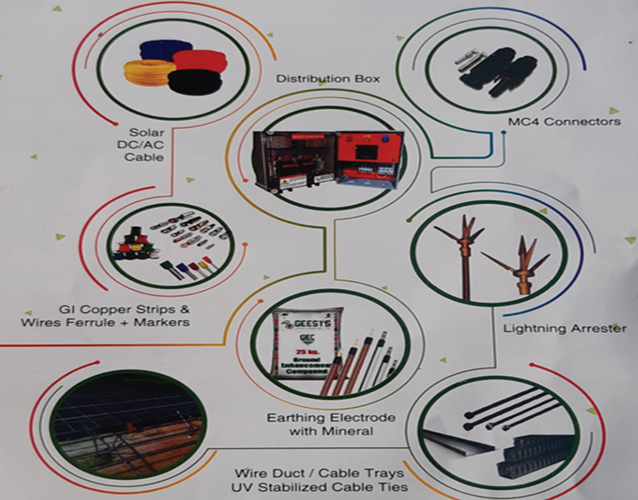

Solar Balance of System Components

We supply complete Solar BoS Components to fulfill all your Solar energy needs under one roof.

List of available Solar BoS Components:
  • Solar DC/AC Cable
  • Distribution Box
  • MC4 Connectors
  • GI Copper Strips
  • Wires Ferrule+Markers
  • Earthing Electrode with Mineral
  • Lightning Arrester
  • Wire Duct/Cable Ties
  • UV Stabilized Cable Ties
  • Solar Module Mounting Structure

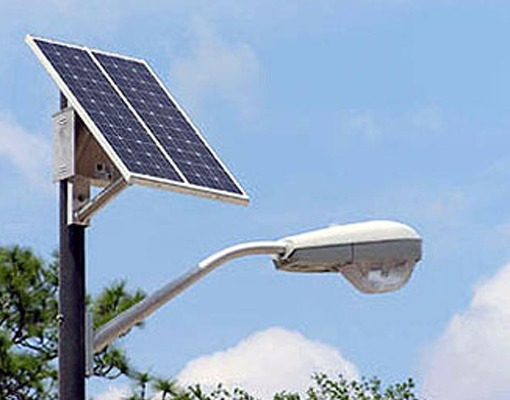

Solar Street Lighting System

Our lighting systems are designed for a wide range of physical and operating environments and are perfect for rural, suburban and metropolitan areas.

Common uses for our lighting systems and power systems are:
  • Highway lighting,parkinglots.
  • Portable Emergency
  • Hazard warning lights at stop signs,cross-walk and on met-towers.

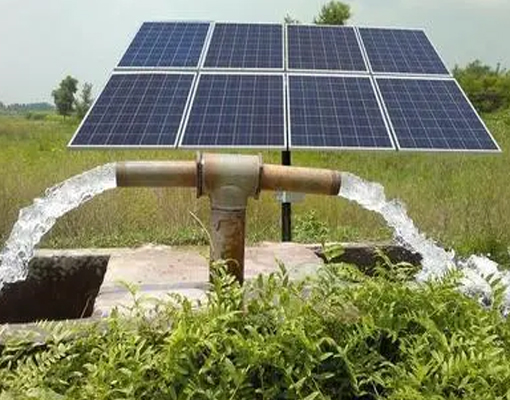

Solar Pumping System

GLS Energies Solutions Solar water pumping system is a stand-alone system for, residential, commercial irrigation and wildlife watering systems and water supply for remote homes and commercial buildings.

Surface Pumps / Submersible pumps:
  • Village Water Supply
  • Livestock Watering
  • Water Supply to Remote Homes / Agriculture
  • Micro Irrigation

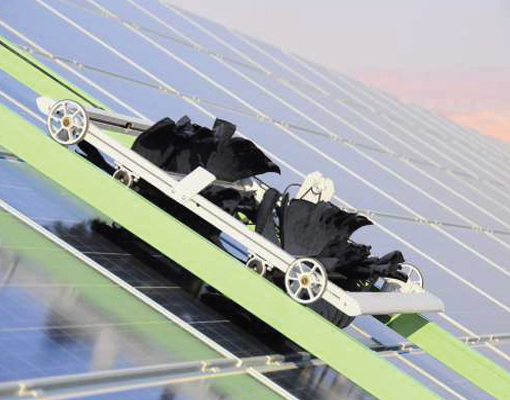

Operation & Maintenance

Verify, record and report information to the Owner on the generation of electricity, loss in generation due to grid disturbance, and consumption of electricity within the facility. Monitor and supervise the operation of the facility and communicate in the form of monthly reports in writing to the Owner.

Operate the Facility in accordance with applicable regulations (particularly on safety and occupational health and environment)
